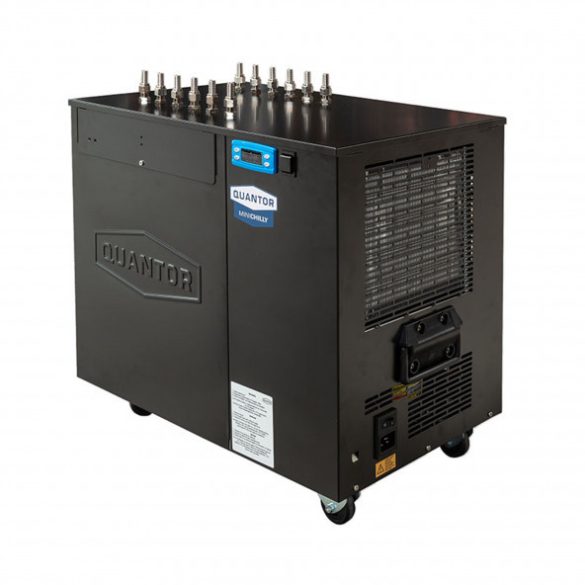

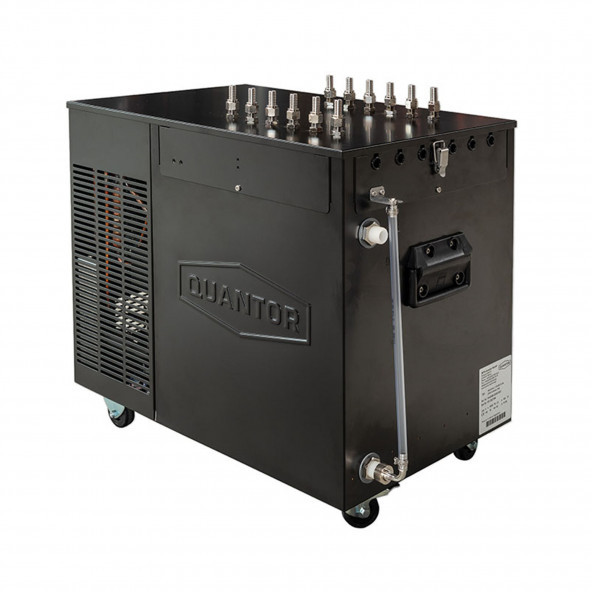

Kreyer MiniChilly Glycol Chiller black 0.3 kW

The MiniChilly glycol chiller is an ideal solution for micro-breweries, hobby brewers and smaller wineries. Due to the simple construction the unit is easy to fill and to install.

Cooling of fermentation and storage tanks
Cooling of must and wine for pre-clearing and tartaric stabilisation
The unit has a cooled glycol water reservoir and is equipped with stainless steel hose barbs for connecting temperature control kits with submersible pumps
Cooling of rooms and storage halls - with additional fan coil


Specifications:

Compact cooling unit, made in Germany
For low water temperature ranges down to -6°C (21.2°F)
Thermostatic controller (Carel)
Complete cooling water circuit containing a water tank
Evaporator made of stainless steel
Fill level display and tank draining outside the unit
Black clad steel housing
Works with submersible pump sets for tank control (not included)
Refrigerant R134a
Ice bank built at below 0°C water temperature
It is required to add glycol (30 - 35%) to the cooling water by outlet temperatures below 0°C (to prevent building of an ice bank)
Fittings 3/8“ for plastic tubes of individual pumps
Solid wheels with brakes, mobile (models 05, 09, 17)
Universal C19 plug
On/off switch
Water level sight tube
Grooves for individual pump cable protection
Safety inner separation water side from electric side


0.3 kW 0.5 kW 0.9 kW 1.7 kW
Cooling capacity, max. litres 220 l 360 l 600 l 1200 l
Crash cooling in 24 hours, max. litres 60 l 120 l 240 l 360 l
