Ss Brewtech™ Ss Glycol Chiller 38 l (10 gal) 3/8 HP, 230 V – EU version

Introducing the Ss Glycol Chiller 3/8 HP, which will maintain lager temperatures and enable crash cooling for up to 6 vessels, even in relatively high ambient temperatures. The chiller was designed to integrate seamlessly with the FTSs kits to provide a complete temperature control system.

Since each FTSs kit includes its own dedicated temperature controller, pump, and tubing; each vessel can be connected to the glycol chiller with its own independent loop. The parallel design of this set-up offers the ability to ferment at ale temperatures in one vessel, and maintain precise serve or crash cooling temperatures in another vessel. The Glycol Chiller can also be paired with the Ss Brite Tanks to hold beer at serving temperatures. This system offers both flexibility and expandability for your home brewery.

Attach up to 6 FTSs kits at one time
Capable of crash cooling and lagering
Use a well-blended solution of 65% distilled water/35% glycol
Assuming one vessel is crash cooled at a time:
Chills up to 4 - 1 bbl Chronicals or Unitanks
Chills up to 6 - 1/2 bbl, 14, or 7 gal Chronicals or Unitanks
Chills up to 6 - 14 or 7 gal Brew Buckets

Vertical chassis layout:

120 VAC 3/8 horsepower compressor
3576 BTUs/Hr

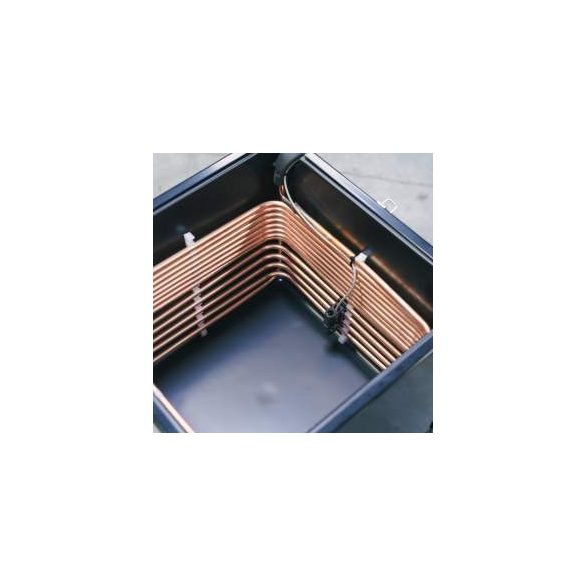

10 gallon reservoir with sight glass
Casters included
Noise level: 40 dB
Made in France
Dimensions W x D x H = 18 x 18 x 28" (45.72 x 45.72 x 71.12 cm)

Note: The chiller is designed to operate at a maximum fill level of 90% reservoir capacity. Overfilling the unit could result in damage to electrical components and void its warranty.
